Harley-Davidson FXDF Dyna Fat Bob 2009

Harley-Davidson FXDF Dyna Fat Bob 2009

Spesifikasi Harley-Davidson FXDF Dyna Fat Bob 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 305.0 kg (672.4 pounds)
Seat height: 663 mm (26.1 inches) If adjustable, lowest setting.
Overall length: 2,330 mm (91.7 inches)
Ground clearance: 125 mm (4.9 inches)
Wheelbase: 1,620 mm (63.8 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone;
Rake (fork angle): 29.0°
Trail: 1,000 mm (39.4 inches)
Front suspension: 49mm with polished aluminium fork triple clamp
.
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Fully Covered, Coil-over shock
Rear suspension travel: 79 mm (3.1 inches)
Rear tyre dimensions: 427/180-70
Front brakes: Double disc. 4-piston
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. Single piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, “Tommy Gun” 2-1-2 collector exhaust
Fuel capacity: 19.30 litres (5.10 gallons)
Color options: Vivid Black, Black Pearl, Black Denim, Pewter Denim, Red Hot Sunglo

Harley-Davidson FXDC Dyna Super Glide Custom-2009

Harley-Davidson FXDC Dyna Super Glide Custom 2009

Spesifikasi Harley-Davidson FXDC Dyna Super Glide Custom 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 295.0 kg (650.4 pounds)
Seat height: 680 mm (26.8 inches) If adjustable, lowest setting.
Overall length: 2,355 mm (92.7 inches)
Ground clearance: 153 mm (6.0 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm with polished aluminium fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Coil-over shock
Rear suspension travel: 104 mm (4.1 inches)
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-17
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 19.30 litres (5.10 gallons)
Color options: Vivid Black, Dark Blue Pearl, Red Hot Sunglo, Vivid Black and Pewter Pearl, Flame Blue Pearl and Pewter Pearl
.

Harley-Davidson FXDB Dyna Street Bob-2009

Harley-Davidson FXDB Dyna Street Bob-2009

Spesifikasi Harley-Davidson FXDB Dyna Street Bob-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 290.0 kg (639.3 pounds)
Weight incl. oil, gas, etc: 205.0 kg (451.9 pounds)
Seat height: 655 mm (25.8 inches) If adjustable, lowest setting.
Overall length: 2,355 mm (92.7 inches)
Ground clearance: 142 mm (5.6 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm fork
Rear suspension: Coil-over shock
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-17
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.20 litres (4.81 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.50 litres (1.45 gallons)
Color options: Vivid Black; Black Denim; Pewter Denim; Red Hot Denim; Dark Blue Denim

Harley-Davidson FXD Dyna Super Glide-2009

Gambar Harley-Davidson FXD Dyna Super Glide-2009

Spesifikasi Harley-Davidson FXD Dyna Super Glide-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Dry weight: 286.0 kg (630.5 pounds)
Seat height: 675 mm (26.6 inches) If adjustable, lowest setting.
Overall height: 1,188 mm (46.8 inches)
Overall length: 2,357 mm (92.8 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm with polished aluminium fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Coil-over shock
Rear suspension travel: 104 mm (4.1 inches)
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-B17
Front brakes: Single disc. 4-piston
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome Staggered Shorty Dual exhaust
Fuel capacity: 18.16 litres (4.80 gallons)
.
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)
.

Harley-Davidson FXCWC Rocker C-2009

Gambar Harley-Davidson FXCWC Rocker C-2009

Spesifikasi Harley-Davidson FXCWC Rocker C-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 307.0 kg (676.8 pounds)
Seat height: 641 mm (25.2 inches) If adjustable, lowest setting.
Overall length: 2,415 mm (95.1 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,760 mm (69.3 inches)
Frame type: Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 36.5°
Trail: 157 mm (6.2 inches)
Front suspension: Telescopic fork, 49 mm
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 79 mm (3.1 inches)
Front tyre dimensions: 90/90-R19
Rear tyre dimensions: 240/40-R18
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black Deluxe, Flame Blue Pearl Deluxe, Crimson Red Sunglo Deluxe
.

Harley-Davidson FXCW Softail Rocker-2009

Gambar Harley-Davidson FXCW Softail Rocker-2009

Spesifikasi Harley-Davidson FXCW Softail Rocker-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 307.0 kg (676.8 pounds)
Seat height: 622 mm (24.5 inches) If adjustable, lowest setting.
Overall length: 2,415 mm (95.1 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,760 mm (69.3 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 36.5°
Trail: 157 mm (6.2 inches)
Front suspension: 49mm telescopic fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 79 mm (3.1 inches)
Front tyre dimensions: 90/90-R19
Rear tyre dimensions: 240/40-R18
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Vivid Black Deluxe, Flame Blue Pearl, Crimson Red Sunglo
.

Harley-Davidson FLTRSE3 CVO Road Glide-2009

Gambar Harley-Davidson FLTRSE3 CVO Road Glide-2009

Spesifikasi Harley-Davidson FLTRSE3 CVO Road Glide-2009

Displacement: 1800.00 ccm (109.84 cubic inches)
Engine type: V2
Stroke: 4
Torque: 155.00 Nm (15.8 kgf-m or 114.3 ft.lbs) @ 6500 RPM
Compression: 9.2:1
Bore x stroke: 101.6 x 111.3 mm (4.0 x 4.4 inches)
Fuel system: Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: Hydraulically actuated, 9-plate wet, with high performance spring
Dry weight: 384.0 kg (846.6 pounds)
Seat height: 668 mm (26.3 inches) If adjustable, lowest setting.
Overall length: 2,428 mm (95.6 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,614 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 51 mm (2.0 inches)
Front tyre dimensions: 130/70-B18
Rear tyre dimensions: 180/55-B18
Front brakes: Double disc. 4-piston calipers
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston calipers
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Chrome, 2-1-2 exhaust header pipe design with
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Titanium Dust with Ghost Feather graphics; Electric Orange and Vivid Black with Ghost Feather graphics

Harley-Davidson FLTR Road Glide- 2009

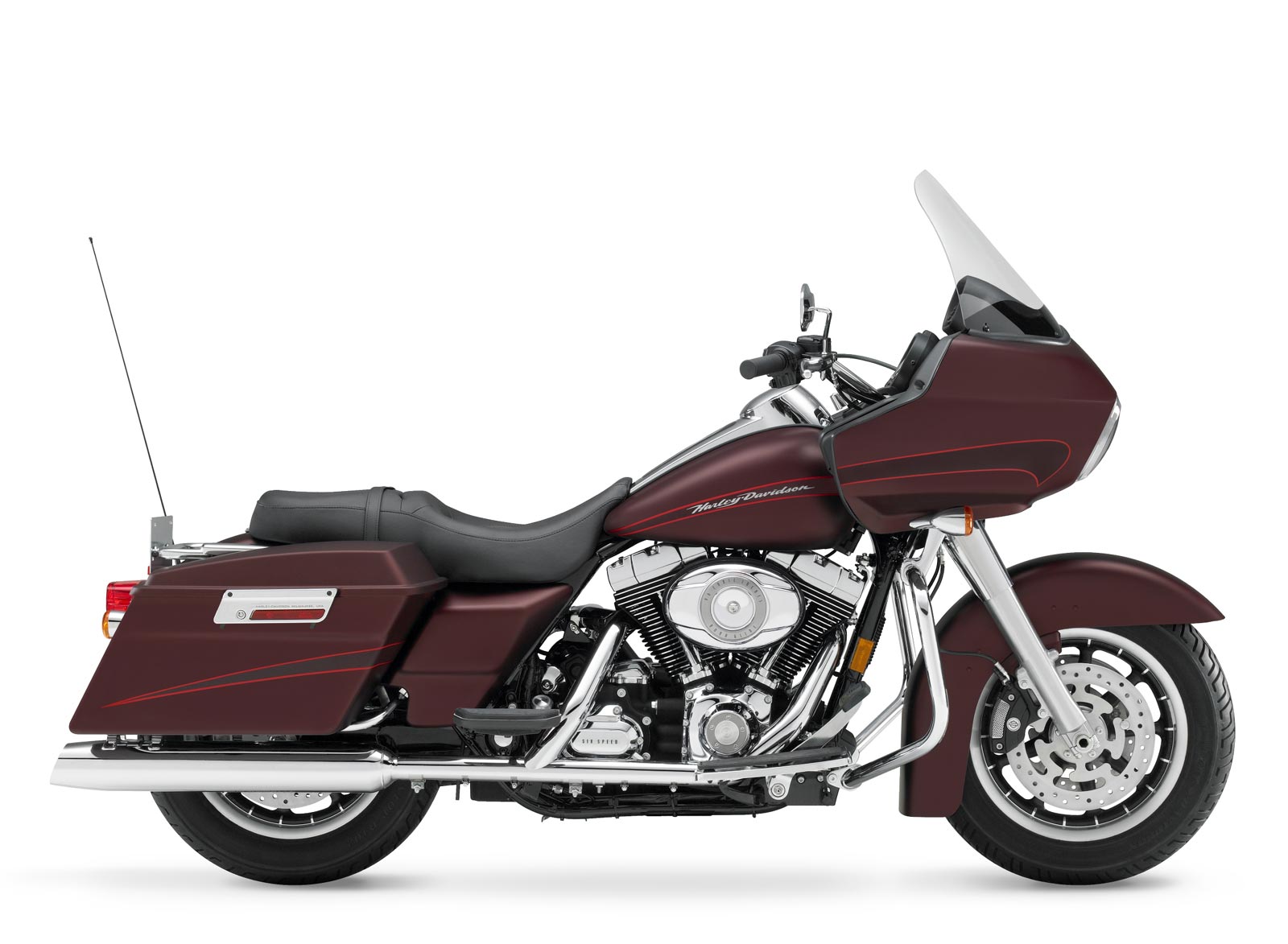

Gambar Harley-Davidson FLTR Road Glide- 2009

Spesifikasi Harley-Davidson FLTR Road Glide- 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 355.0 kg (782.6 pounds)
Weight incl. oil, gas, etc: 378.0 kg (833.3 pounds)
Seat height: 683 mm (26.9 inches) If adjustable, lowest setting.
Overall height: 1,397 mm (55.0 inches)
Overall length: 2,390 mm (94.1 inches)
Overall width: 909 mm (35.8 inches)
Ground clearance: 129 mm (5.1 inches)
Wheelbase: 1,613 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic fork
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. Brembo triple-disc brake system
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: 2-1-2 exhaust system
Fuel capacity: 22.71 litres (6.00 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)

Harley-Davidson FLSTSB Softail Cross Bones-2009

Gambar Harley-Davidson FLSTSB Softail Cross Bones-2009

Spesifikasi Harley-Davidson FLSTSB Softail Cross Bones-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 318.0 kg (701.1 pounds)
Seat height: 676 mm (26.6 inches) If adjustable, lowest setting.
Overall length: 2,330 mm (91.7 inches)
Ground clearance: 125 mm (4.9 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 32.0°
Trail: 160 mm (6.3 inches)
Front suspension: Black leading link
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: MT90-B16
Rear tyre dimensions: 200/55-R17
Front brakes: Single disc
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, straight over/under shotgun exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Dark Blue Pearl, Black Denim, Pewter Denim
.

Harley-Davidson FLSTN Softail Deluxe - 2009

Harley-Davidson FLSTN Softail Deluxe - 2009

Spesifikasi Harley-Davidson FLSTN Softail Deluxe - 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.68 Nm (12.3 kgf-m or 89.0 ft.lbs) @ 2850 RPM
Compression: 9.2:1
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system: Pressurized, dry sump
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 316.0 kg (696.7 pounds)
Seat height: 622 mm (24.5 inches) If adjustable, lowest setting.
Overall length: 2,405 mm (94.7 inches)
Overall width: 980 mm (38.6 inches)
Ground clearance: 121 mm (4.8 inches)
Wheelbase: 1,638 mm (64.5 inches)
Chassis and dimensions
Frame type: Mild steel tubular frame; rectangular section backbone;stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3 mm telescopic, chrome dust covers
Rear suspension: Hidden, horizontal-mounted, coil-over
Front tyre dimensions: MT90-16
Rear tyre dimensions: MU85-B16
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome Over/Under Shotgun exhaust
Fuel capacity: 18.90 litres (4.99 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)
.

Harley-Davidson FLSTF Fat Boy-2009

Harley-Davidson FLSTF Fat Boy-2009

Spesifikasi Harley-Davidson FLSTF Fat Boy-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 313.0 kg (690.0 pounds)
Seat height: 645 mm (25.4 inches) If adjustable, lowest setting.
Overall length: 2,396 mm (94.3 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,635 mm (64.4 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3mm telescopic, “beer can” covers
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: 140/75-R17
Rear tyre dimensions: 200/55-R17
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, over/under shotgun exhaust with dual mufflers
.
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Black Pearl, Pewter Pearl, Flame Blue Pearl, Black Denim, Red Hot Sunglo

Harley-Davidson FLSTC Heritage Softail Classic-2009

Harley-Davidson FLSTC Heritage Softail Classic

Spesifikasi Harley-Davidson FLSTC Heritage Softail Classic

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 326.0 kg (718.7 pounds)
Seat height: 648 mm (25.5 inches) If adjustable, lowest setting.
Overall length: 2,405 mm (94.7 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,635 mm (64.4 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3mm telescopic, “beer can” covers
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: MT90-B16
Rear tyre dimensions: 150/80-16
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Pewter Pearl, Dark Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Deep Turquoise and Antique White; Flame Blue Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold.
.

Harley-Davidson FLHX Street Glide

Gambar Harley-Davidson FLHX Street Glide

Spesifikasi Harley-Davidson FLHX Street Glide

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Dry weight: 355.0 kg (782.6 pounds)
Seat height: 690 mm (27.2 inches) If adjustable, lowest setting.
Overall length: 2,430 mm (95.7 inches)
Ground clearance: 119 mm (4.7 inches)
Wheelbase: 1,625 mm (64.0 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Enhanced handling
Rear suspension travel: 51 mm (2.0 inches)
.
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Two-into-One-into-Two chrome exhaust
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Vivid Black, Black Pearl, Pewter Pearl, Dark Blue Pearl, Pewter Denim, Red Hot Denim; Red Hot Sunglo

Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Gambar Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Spesifikasi Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs)
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: Wet, multiplate
Front suspension: Triple Circuit Damping (TCD) front forks
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. Brembo
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Double disc. Hayes Brake dual-disc rear brake system with integrated park brake
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: 2-1-2 exhaust system
Fuel capacity: 22.71 litres (6.00 gallons)
Comments: Three-wheel specific frame. Optional electric reverse. Rear luggage trunk.
.

Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide

Gambar Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide

Spesifikasi Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide

Displacement: 1800.00 ccm (109.84 cubic inches)
Engine type: V2
Stroke: 4
Torque: 149.00 Nm (15.2 kgf-m or 109.9 ft.lbs) @ 6500 RPM
Compression: 9.2:1
Bore x stroke: 101.6 x 111.3 mm (4.0 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: Hydraulically actuated, 9-plate wet, with high performance spring
Dry weight: 402.0 kg (886.3 pounds)
Seat height: 696 mm (27.4 inches) If adjustable, lowest setting.
Overall length: 2,494 mm (98.2 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,614 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: 41.3 mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. 4-piston calipers
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston calipers
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Chrome, dual exhaust with touring mufflers,
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics; Stardust Silver and Twilight Blue with Forge-tone graphics
.

Harley-Davidson FLHTCU Ultra Classic Electra Glide-2009

Harley-Davidson FLHTCU Ultra Classic Electra Glide

Spesifikasi Harley-Davidson FLHTCU Ultra Classic Electra Glide

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs)
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: Wet, multiplate
Physical measures
Dry weight: 400.0 kg (881.8 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall length: 2,515 mm (99.0 inches)
Ground clearance: 145 mm (5.7 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: New Two-into-One-into-Two chrome exhaust
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Vivid Black, Black Pearl, Dark Blue Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Deep Turquoise and Antique White; Flame Blue Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold.

Harley-Davidson FLHTC Electra Glide Classic

Gambar Harley-Davidson FLHTC Electra Glide Classic

Spesifikasi Harley-Davidson FLHTC Electra Glide Classic

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 375.0 kg (826.7 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall height: 1,549 mm (61.0 inches)
Overall length: 2,469 mm (97.2 inches)
Ground clearance: 129 mm (5.1 inches)
Wheelbase: 1,613 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: New Two-into-One-into-Two chrome exhaust with
Fuel capacity: 22.70 litres (6.00 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)
.

Harley-Davidson FLHT Electra Glide Standard

Gambar Harley-Davidson FLHT Electra Glide Standard

Harley-Davidson FLHT Electra Glide Standard

Spesifikasi Harley-Davidson FLHT Electra Glide Standard

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 355.0 kg (782.6 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall length: 2,640 mm (103.9 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1,625 mm (64.0 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: New Two-into-One-into-Two chrome exhaust with
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Vivid Black, Flame Blue Pearl, Black Denim
.

Harley-Davidson FLHRC Road King Classic

Gambar Harley-Davidson FLHRC Road King Classic

Spesifikasi Harley-Davidson FLHRC Road King Classic

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Dry weight: 355.0 kg (782.6 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall length: 2,400 mm (94.5 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1,625 mm (64.0 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Handling
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 407/130-90
Rear tyre dimensions: 407/180-65
Front brakes: Double disc. 4-piston, ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 4-piston, ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Two-into-One-into-Two chrome exhaust
Fuel capacity: 22.70 litres (6.00 gallons).
.

Harley-Davidson FLHR Road King 2009

Harley-Davidson FLHR Road King 2009

Spesifikasi Harley-Davidson FLHR Road King 2009

Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 355.0 kg (782.6 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall length: 2,465 mm (97.0 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1,625 mm (64.0 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic fork
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Single disc. 4-piston, ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 4-piston, ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Two-into-One-into-Two chrome exhaust with
Fuel capacity: 22.70 litres (6.00 gallons).
.

Gambar Ducati Superbike 848

Ducati Superbike 848 Red Color

Gambar Ducati Superbike 848 Silver Color

The 848 is built on the same platform as Ducati’s mind-blowing 1098, but with a less racetrack-worthy motor, which would only improve the odds of killing yourself on your daily commute, anyway.

Not that the 848 is any less insane of a ride: with 134 horsepower, the 369 pound bike will smoke almost any car out there and sports a better power-to-weight ratio than Ducati’s legendary (and now retired) 999.

It’s also got some sweet Italian styling cues, including a single-sided rear swing-arm to show off its gorgeous wheel, high-mount exhaust, and tastefully executed projection headlamps.

Spesifikasi Ducati Superbike 1198 S - 2009

Ducati Superbike 1198 S Black Color

Ducati Superbike 1198 S Red Color

Spesifikasi Ducati Superbike 1198 S - 2009

Chassis
* Frame: Tubular steel Trellis frame in ALS 450
* Wheelbase: 1430 mm / 56.3 in
* Rake: 24,5°
* Front suspension: Ohlins 43mm fully adjustable upside-down fork with TiN
* Front wheel travel: 120 mm / 4.7 in
* Front brake: 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc calipers 4-piston, 2-pad.

* Front wheel: “GP Replica” 7-spoke in forged light alloy 3.50 x 17
* Front tyre: 120/70 ZR 17
* Rear suspension: Progressive linkage with fully adjustable Ohlins monoshock with top-out spring. Aluminium single-sided swingarm

* Rear wheel travel: 127 mm / 5 in
* Rear brake: 245 mm disc, 2-piston caliper
* Rear wheel: “GP Replica” 7-spoke forged light alloy 6.00 x 17
* Rear tyre: 190/55 ZR 17
* Weight: 169 kg / 373 lb
* Seat height: 820 mm / 32.2 in
* Fuel tank capacity: 15.5 L (of which 4L reserve) / 4.1 US gal (of which 1 US gal reserve)

* Instruments: Digital MotoGP derived unit with displays for: Speedometer, rev counter, lap times, time, air temp, coolant temp, battery voltage, A trips, fuel reserve trip, DTC level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn s

* Warranty: 2 years unlimited mileage
* Body colours (frame/wheels): Rosso (Bronzo / Bronzo) - Midnight black (Bronzo / Bronzo)
* Versions: Dual seat


Engine
* Type: L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
* Displacement: 1198.4cc
* Bore x Stroke: 106 x 67.9mm
* Compression Ratio: 12.7:1
* Power: 170hp - 125kw @ 9750rpm
* Torque: 97lb-ft 131.4Nm @ 8000rpm
* Emissions: Euro3
* Fuel injection: Marelli electronic fuel injection, elliptical throttle bodies
* Exhaust: Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers


Transmission
* Gearbox: 6 speed
* Ratios: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 22/25
* Primary drive: Straight cut gears; Ratio 1.84:1
* Final drive: Chain; Front sprocket 15; Rear sprocket 38
* Clutch: Dry multiplate with hydraulic control.

Spesifikasi 2009 Ducati Superbike 1198

Ducati Superbike 1198 White Color

Ducati Superbike 1198 Red Color

Spesifikasi 2009 Ducati Superbike 1198


Displacement: 1198.40 ccm (73.13 cubic inches)
Engine type: V2
Stroke: 4
Power: 170.00 HP (124.1 kW)) @ 9750 RPM
Torque: 131.53 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM
Compression: 12.7:1
Bore x stroke: 106.0 x 67.9 mm (4.2 x 2.7 inches)
Fuel system: Injection. Marelli electronic fuel injection, elliptical throttle bodies
Fuel control: Desmodromic valve control
Starter: Electric
Cooling system: Liquid
Gearbox: 6-speed
Transmission type
final drive: Chain
Clutch: Dry multiplate with hydraulic control
Dry weight: 171.0 kg (377.0 pounds)
Seat height: 820 mm (32.3 inches) If adjustable, lowest setting.
Wheelbase: 1,430 mm (56.3 inches)
Frame type: Tubular steel Trellis frame in ALS 450
Rake (fork angle): 24.5°
Front suspension: Showa 43mm with TiO fully adjustable upside-down fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm

Rear suspension travel: 127 mm (5.0 inches)
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 190/55-ZR17
Front brakes: Double disc
Front brakes diameter: 330 mm (13.0 inches)
Rear brakes: Single disc
Rear brakes diameter: 245 mm (9.6 inches)
Exhaust system: Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers

Power/weight ratio: 0.9942 HP/kg
Fuel capacity: 15.50 litres (4.10 gallons).

Ducati Superbike 1098R Bayliss LE 2009

Gambar Ducati Superbike 1098R Bayliss LE 2009

Spesifikasi Ducati Superbike 1098R Bayliss LE 2009

Displacement: 1198.40 ccm (73.13 cubic inches)
Engine type: V2
Stroke: 4
Power: 180.00 HP (131.4 kW)) @ 9750 RPM
Torque: 134.37 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7750 RPM
Compression: 12.8:1
Bore x stroke: 106.0 x 67.9 mm (4.2 x 2.7 inches)
Fuel system: Injection. Marelli electronic fuel injection, elliptical throttle bodies.
Fuel control: Desmodromic valve control
Starter: Electric
Cooling system: Liquid
Gearbox: 6-speed
Clutch: Dry multiplate with hydraulic control slipper clutch
Dry weight: 165.0 kg (363.8 pounds)
Seat height: 820 mm (32.3 inches) If adjustable, lowest setting.
Wheelbase: 1,430 mm (56.3 inches)
Rake (fork angle): 24.5°
Front suspension: Ohlins 43mm fully adjustable upside-down fork with TiN
Front suspension travel: 120 mm (4.7 inches)
Rear suspension: Progressive linkage with fully adjustable Ohlins TTXR monoshock with top-out spring. Aluminium single-sided swingarm

Rear suspension travel: 127 mm (5.0 inches)
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 190/55-ZR17
Front brakes: Double disc
Front brakes diameter: 330 mm (13.0 inches)
Rear brakes: Single disc
Rear brakes diameter: 245 mm (9.6 inches)
Exhaust system: Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel and titanium mufflers

Power/weight ratio: 1.0909 HP/kg
Fuel capacity: 15.50 litres (4.10 gallons).

Ducati Superbike 1098R 2009

Spesifikasi Ducati Superbike 1098R 2009

Displacement: 1198.40 ccm (73.13 cubic inches)
Engine type: V2
Stroke: 4
Power: 180.00 HP (131.4 kW)) @ 9750 RPM
Torque: 134.37 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7750 RPM
Compression: 12.8:1
Bore x stroke: 106.0 x 67.9 mm (4.2 x 2.7 inches)
Fuel system: Injection. Marelli electronic fuel injection, elliptical throttle bodies.
Fuel control: Desmodromic valve control
Cooling system: Liquid
Gearbox: 6-speed
Transmission type final drive: Chain
Clutch: Dry multiplate with hydraulic control slipper clutch
Dry weight: 165.0 kg (363.8 pounds)
Seat height: 820 mm (32.3 inches) If adjustable, lowest setting.
Wheelbase: 1,430 mm (56.3 inches)
Frame type: Tubular steel Trellis frame in ALS 450
Rake (fork angle): 24.5°
Front suspension: Ohlins 43mm fully adjustable upside-down fork with TiN
Front suspension travel: 120 mm (4.7 inches)
Rear suspension: Progressive linkage with fully adjustable Ohlins TTXR monoshock with top-out spring. Aluminium single-sided swingarm

Rear suspension travel: 127 mm (5.0 inches)
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 190/55-ZR17
Front brakes: Double disc
Front brakes diameter: 330 mm (13.0 inches)
Rear brakes: Single disc
Rear brakes diameter: 245 mm (9.6 inches)
Exhaust system: Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel and titanium mufflers

Power/weight ratio: 1.0909 HP/kg
Fuel capacity: 15.50 litres (4.10 gallons)
Color options: Red (Red/Racing Gold)
